Comprehensive Partial Discharge Monitoring Device
PD detection, measurement and data analysis made easy.
A compact, handheld device, the UltraTEV® Plus² is designed for precision and ease of use. Whether you're a PD expert or a newcomer, its user-friendly interface and comprehensive features ensure you get the insights you need.
Benefits
- Optimise maintenance cycles and asset life through a better understanding of asset condition
- Compares PD results over time to identify trends
- Increase on-site productivity by rapidly collecting key condition information in an accurate and consistent manner
- Detect PD in a wider range of assets with the inclusion of cable PD technology
- Highly user-friendly - Suitable for both the PD expert and new user
- Compatible with a wide range of additional sensors to allow testing of multiple types of asset
Features
- Provides numerical and audible readings for classification of PD with all sensors:
- Wi-Fi connectivity allows survey results to be easily synchronised with asset management systems
- Menu-driven, backlit colour touchscreen and keyboard (can be used wearing gloves)
- Long-life, rechargeable internal Lithium-Ion (Li-Ion battery)
Addition sensors can be used with the UltraTEV Plus2 for more comprehensive testing.
There are different types of PD and assets that can operate at a range of voltages. To deal with these variables, the UltraTEV Plus2 uses a range of sensors to enable diverse testing.
Sensors available for rent:

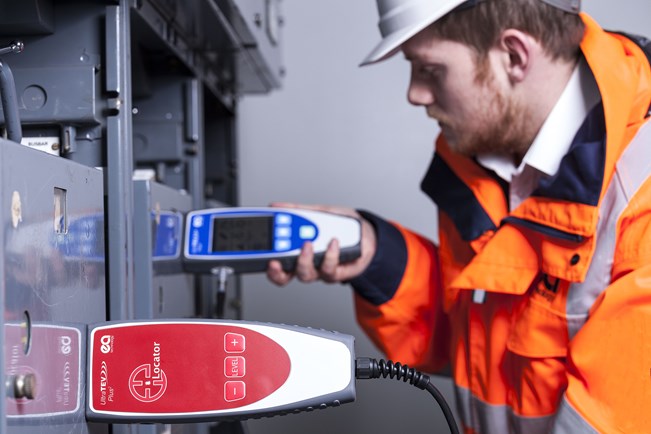

UltraTEV Plus² Locator Probe
The UltraTEV Plus2 Locator probe accessory allows sources of TEV to be accurately located using the time of flight technique. The instrument can determine the direction of travel of the TEV pulses by discriminating timing of pulses arriving at each sensor down to a fraction of a nanosecond - equivalent to a few centimetres in distance. Advanced software enables the instrument to locate PD at multiple discharge sites.

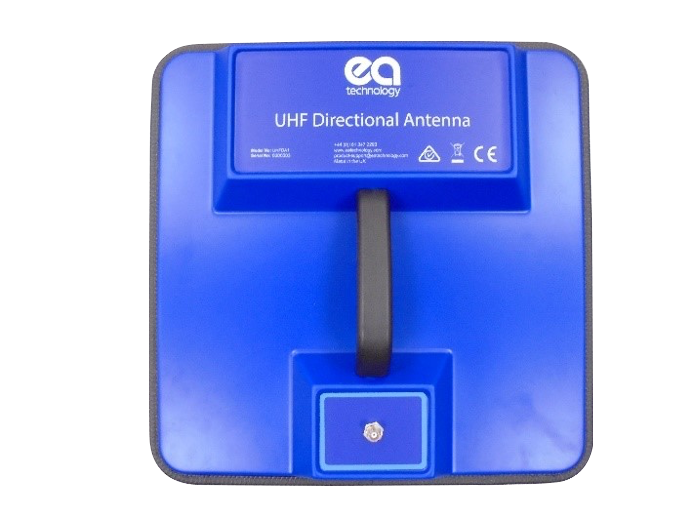

The UHF Directional Antenna accessory for the UltraTEV Plus2 is uniquely effective for detecting and locating PD activity in open terminal switchyards. It is also a highly effective instrument for detecting PD problems in cable joints and sealing ends. The antenna is very compact and is specifically designed for safe use inside electrical switchyards. As the antenna is highly directional with a selectable centre measurement frequency it can easily be employed as a first pass safety tool for switchyard entry. It can also be used for surveying and pinpointing individual sources as part of a full site survey.
The instrument can be tuned to avoid other interference related frequencies within the switchyard and will ignore non-destructive corona discharge activity. With its unique ability to detect internal partial discharge activity in high noise environments it complements the use of the UltraTEV Plus² and UltraDish.

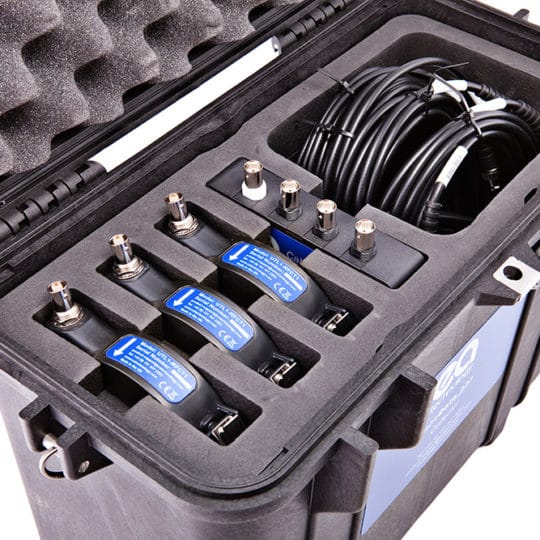

Cable Partial Discharge Detection Device
Identify and report on PD activity in LIVE MV/HV cable networks.
The CableData Collector™ identifies and allows you to report on PD activity in live medium and high voltage cable networks, providing insights to the condition of ageing cable assets.
Benefits
- Enables cost-effective collection of accurate PD data without the deployment of specialist engineers
- Quick assessment of a large number of cables to build up a total view of the condition of a distribution cable network
- Highlights cables that require more detailed analysis techniques
- Prevents unplanned outages by identifying cable defects before they fail
- Removes the need for expensive off-line testing
- Lightweight, portable and ready-to-use
Features
- Detects and measures PD activity in single and 3 phase cables
- Works with all insulated cable types
- Expert cable condition analysis and reporting service
- Small, robust, portable and easy to use
Rent an instrument with us today! Get in touch for a personalised quote.
