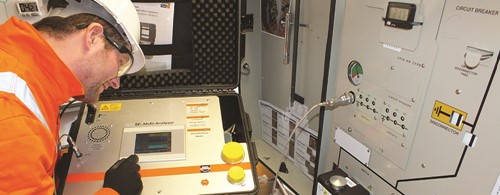

Preventing Failure in Gas Insulated Switchgear

Prevent Switchgear Failure with Hexafluoride (SF6) Gas Insulation Assessment

Maintaining the safety, reliability, and performance of gas insulated switchgear (GIS) depends heavily on the condition of its insulating medium. Our SF6 Insulation Assessment service provides comprehensive testing and analysis of sulphur hexafluoride (SF6) gas to detect early signs of degradation, identify faults, and prevent costly failures.

By combining advanced diagnostics with industry expertise, we help asset owners ensure their gas insulated switchgear operates efficiently while meeting environmental and regulatory requirements.

What is Gas Insulated Switchgear?

Gas insulated switchgear (GIS) is a type of high-voltage equipment that uses SF6 gas as an insulating medium. This enables compact, enclosed designs that are highly reliable and well-suited for environments where space is limited or conditions are challenging.

The performance of GIS systems depends on the purity, pressure, and integrity of the SF6 gas. Any contamination or leakage can compromise insulation strength and increase the risk of failure.

Why SF6 Gas Insulation Assessment is Critical

During normal operation, electrical arcing within gas insulated switchgear can cause SF6 gas to break down and form decomposition by-products, especially if moisture or impurities are present. These by-products can reduce insulation performance and damage internal components.

Regular SF6 insulation assessment helps to:

• Detect impurities such as moisture and acidity
• Identify decomposition products caused by arcing
• Monitor gas pressure and detect leaks
• Ensure compliance with environmental regulations
• Maintain safe and reliable operation of GIS assets

When combined with Partial Discharge Monitoring Service, asset owners can detect early-stage insulation faults that may not yet be visible through gas testing alone.

Comprehensive SF6 Testing and Analysis

Our service covers a full range of diagnostic activities designed to assess the condition of SF6 gas and the overall performance of gas insulated switchgear.

Leak Detection

We conduct highly sensitive leak detection tests capable of identifying leaks as small as 1ppm. If a leak is detected, we pinpoint its exact location and provide clear recommendations for repair. This helps prevent gas loss, maintain insulation integrity, and reduce environmental impact.

Gas Quality Analysis

We assess SF6 gas quality in accordance with IEC 60480 standards, measuring key parameters such as:

• Gas purity
• Moisture content
• Acidity levels

These indicators provide valuable insight into the condition of the gas and whether it remains suitable for continued use.

Pressure Monitoring and Refilling

Maintaining correct gas pressure is essential for ensuring adequate insulation. We monitor SF6 pressure levels and, where required, can safely refill equipment with new gas. All gas handling is carried out in line with strict environmental and regulatory requirements.

Gas Recovery and Handling

Our gas recovery service supports:

• Decommissioning of equipment
• Disposal of non-compliant gas
• Preparation for gas replacement

This ensures safe handling of SF6 gas while minimising emissions.

Laboratory Analysis (Optional)

For a deeper understanding of gas conditions, samples can be taken for laboratory-based chemical analysis. This provides additional insight into long-term degradation processes and potential internal faults.

Identifying Issues in Gas Insulated Switchgear

Gas insulated switchgear can develop several issues over time, including:

• SF6 gas leaks due to seal degradation
• Moisture ingress affecting insulation performance
• Decomposition by-products from electrical arcing
• Pressure loss impacting operational reliability

Many of these issues are not visible during routine inspections. However, through SF6 insulation assessment, they can be detected early, before they lead to failure.

To further enhance fault detection, SF6 testing can be combined with partial discharge testing for early fault detection, which identifies insulation defects within switchgear systems.

Supporting Predictive Maintenance Strategies

Traditional maintenance approaches often rely on fixed schedules or reactive repairs. However, this can lead to unnecessary costs or unexpected failures.

By incorporating SF6 insulation assessment into a broader asset strategy, supported by services like Network Infrastructure Visibility, asset owners can move towards predictive maintenance.

This approach enables:

• Early detection of degradation trends
• Better planning of maintenance activities
• Reduced downtime and operational risk
• Optimised asset lifecycle management

For deeper root-cause analysis, findings from SF6 testing can also feed into Failure Investigations, helping identify why faults occur and how to prevent recurrence.

Environmental and Regulatory Compliance

SF6 gas is highly effective as an insulating medium but is also a potent greenhouse gas. As a result, strict regulations govern its use, handling, and disposal.

Our SF6 insulation assessment service ensures that your gas insulated switchgear:

• Meets environmental compliance requirements
• Minimises gas leakage and emissions
• Maintains accurate records of gas usage and handling
• Follows best practices for safe and responsible operation

By proactively monitoring SF6 gas conditions, organisations can reduce their environmental impact while maintaining system reliability.

Expert Reporting and Recommendations

Following each assessment, we provide a detailed report that includes:

• Results of gas analysis and testing
• Identification of any leaks or contamination
• Assessment of overall switchgear condition
• Practical recommendations for maintenance or corrective action

These insights support informed decision-making and help prioritise maintenance activities across your asset portfolio.

For organisations managing multiple asset types, these findings can be integrated with transformer condition assessment solutions and other diagnostic services to provide a unified view of network health.

Applications Across Industries

Our SF6 insulation assessment service is used across a wide range of industries where gas insulated switchgear plays a critical role, including:

• Utilities and power generation
• Mining and heavy industry
• Oil and gas facilities
• Transport and infrastructure
• Renewable energy installations.

Why Choose EA Technology?

EA Technology is an accredited expert in working with SF6 gas and assessing the condition of gas insulated switchgear. Our team combines technical expertise with advanced diagnostic tools to deliver accurate, actionable insights.

Our approach includes:

• In-situ, non-invasive testing methods
• Compliance with international standards and regulations
• Integration with switchgear condition assessment services
• Data-driven recommendations for asset management
• A strong focus on safety and environmental responsibility
